Re: Gravity class insights

Postby jpennington » Thu Jan 02, 2014 3:00 pm

John great to hear about the progress on the Parma track. Hopefully it can lead to a race event there. There will be a gravity exhibition race at the national this year. Mo and I have had some early talks about it being during the first part of the race weekend.

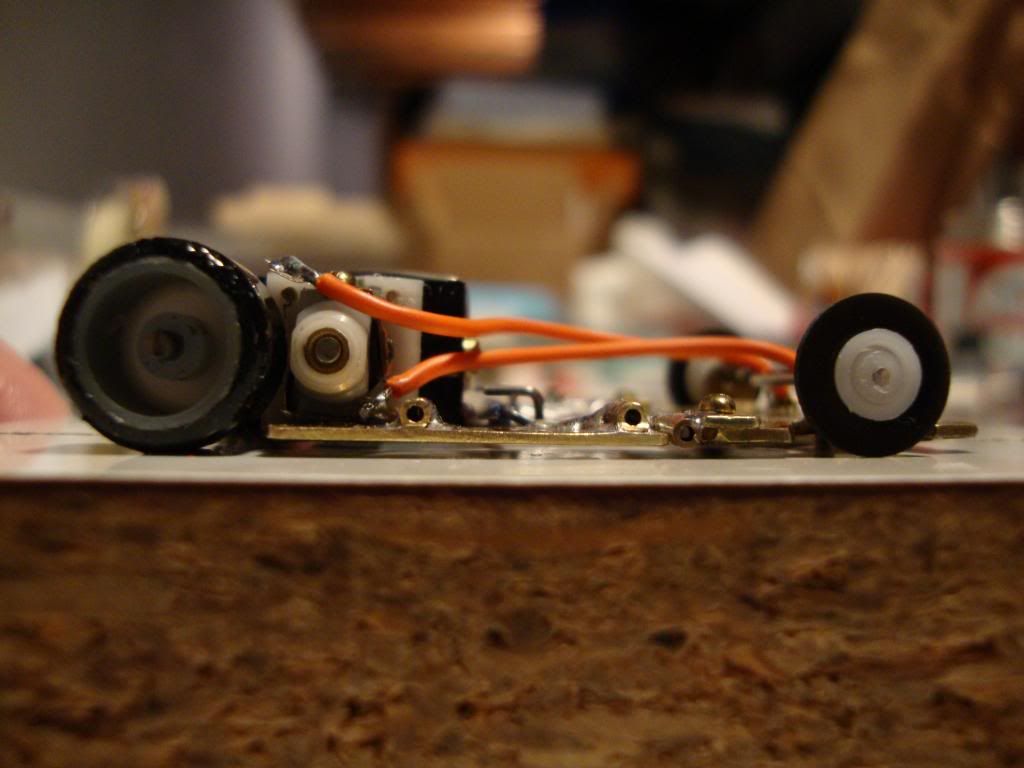

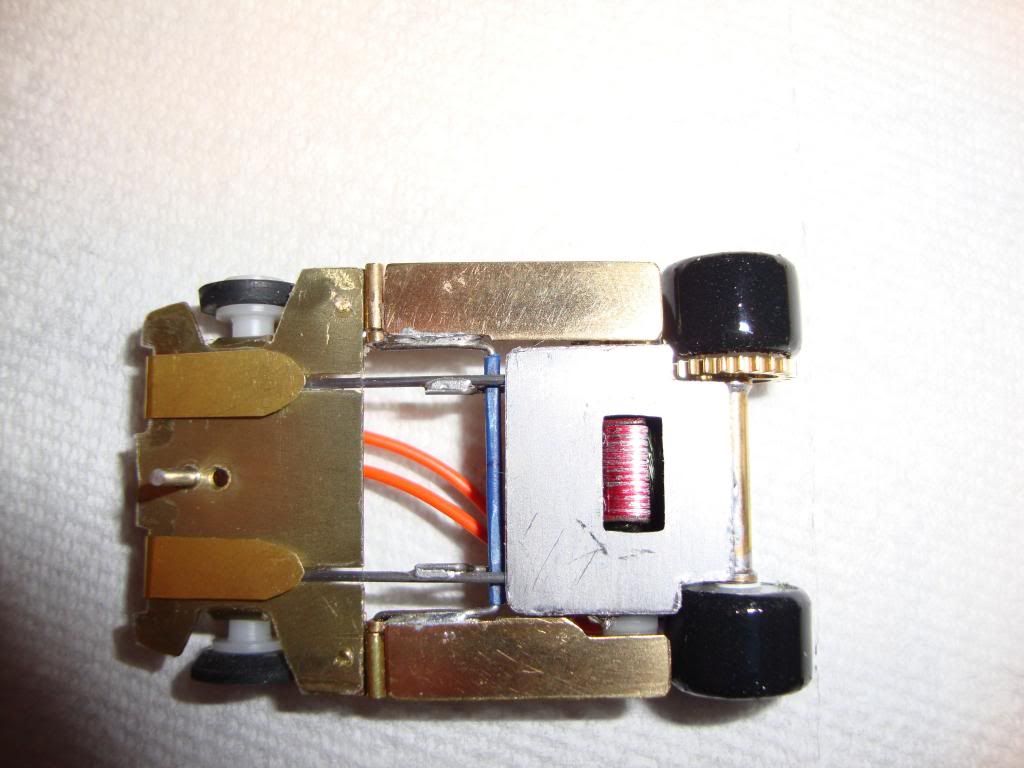

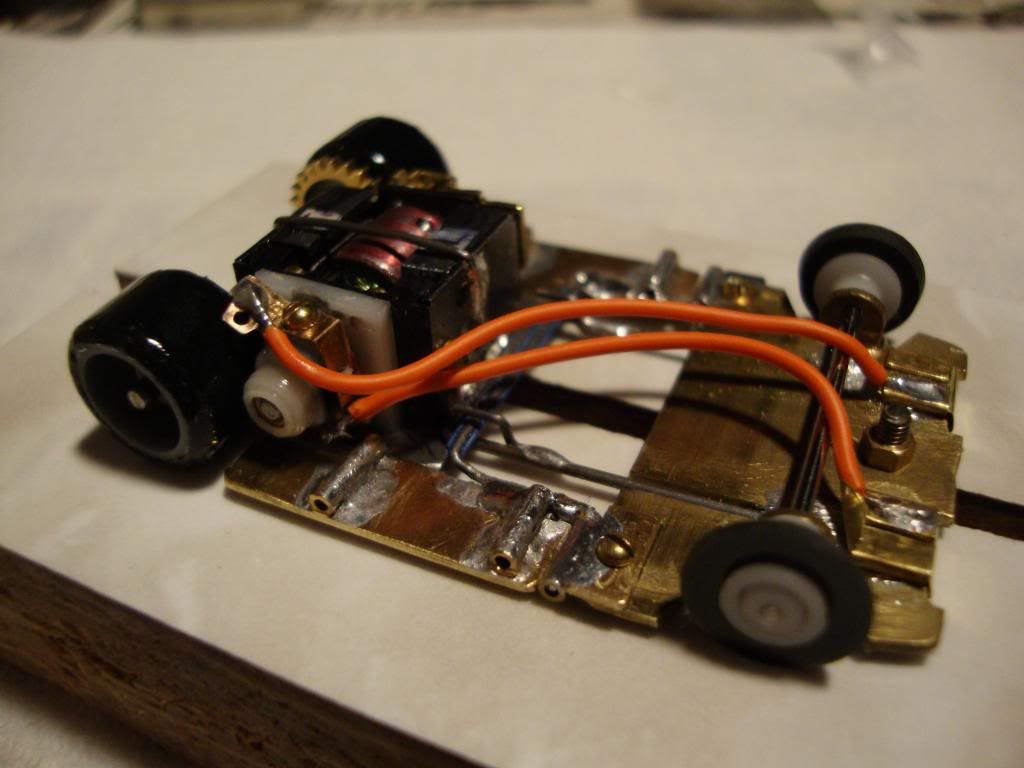

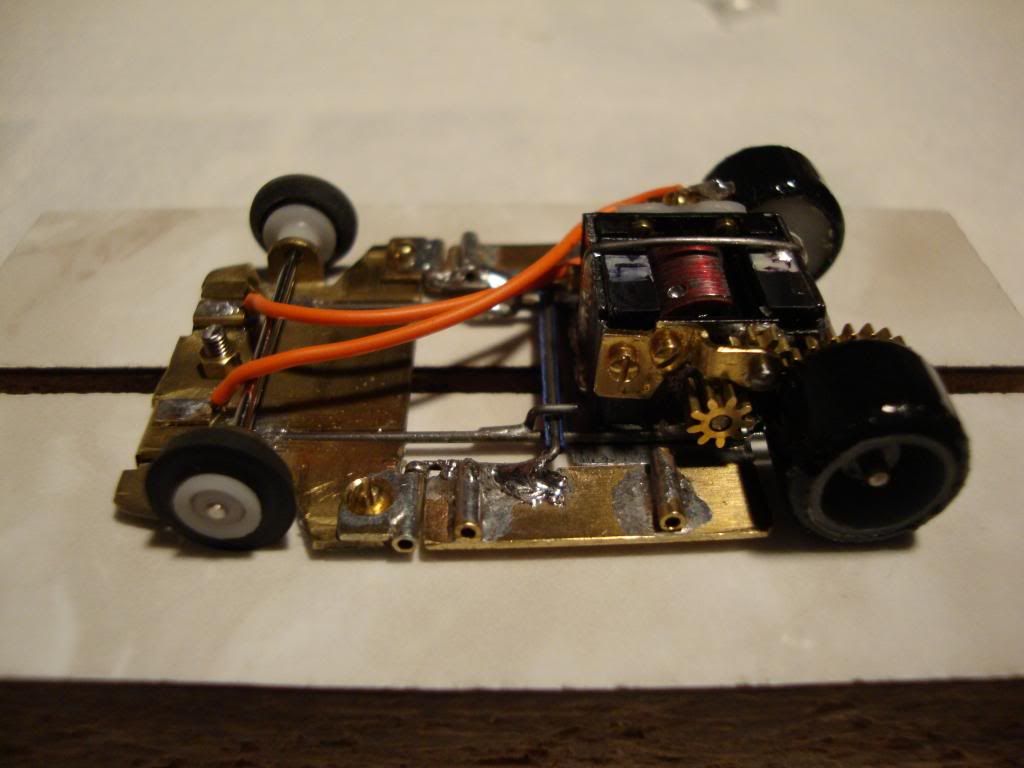

On another note I would like to share some pictures and information on a very innovative and impressive build by Trevor Machuga, on of our Michigan racers. Trevor has taken quickly to this class and as you see his talents are quite apparent. Here is what Trevor has to say about his three gear sidewinder build:

This car started out with the idea of how could I create a sidewinder using a "traditionally sized" HO armature, like the kind found in Tyco or Super G+/G3. The motor can and magnets came out of a toy building that was used to ring a bell. The can is identical to those found in Bachmann Tracksters HO scale jeep and van that are made to run on railroad track, only the magnets are stronger than Bachmann. This motor is much narrower than the usual TycoPro HT50 motor or the 440X2 becuase the magnets are 1/2 the thickness of Tyco 440 magnets but of similar strength. The narrower motor allowed for great sidewinder placement with the use of a t-jet 9 tooth pinion as an idler gear. The endbell is a combination of two Bachmann trackster endbells. One was turned 90°, the open brush ends filled with "A+B" epoxy, and 00-90 holes drilled and tapped to mount G+ brushes. You will notice that one of the brushes is very close to the rear tire. This was the limiting factor for how far back the motor could be placed in the chassis and still have brushes on the sides, and that is why the idler gear was necessary.
The most challenging piece was the idler gear bracket which supports one end of the idler gear. About 10 hours went into the construction of this bracket, all done by hand and "eyeballed" into position. Care had to be taken to bend it to the right thickness to go over the idler. Lining up the holes was also tricky, because this was done visually without measurements by placing the bent bracket over the can and idler shaft and drilling small holes - progressively enlarging them to size and position until everyting was lining up correctly.
The front half of the chassis is from a Landshark kit where I flattened the sides, trimmed off the body mounts, recessed the pickup wipers, and cut out extra-long notches for the 0.32' single main rails. The distance along the main rails from the motor to the front pan is the same as on the inline mini-motor Landshark. I "borrowed" this feature because I am assuming that the amount of chassis flex will be similar and I do not own a track for extensive testing.
Rear axle is titanium from JW's so that it is not attracted to motor magnet. Gearing is 9th pinion, 9th idler, and 24th driven gear. The floppy body mount is similar to that found on other sidewinders but is also removable to allow access for gear and tire pullers.
I have driven this car with a 3-ohm and a 7.5-ohm armature. Despite the wide resistance range, the car was very stable during hard acceleration out of the corner with either arm, producing surprisingly low tail wagging even with the 3-ohm arm. I think that a mid-range arm will yeild a very drivable, competitive car.
This car started out with the idea of how could I create a sidewinder using a "traditionally sized" HO armature, like the kind found in Tyco or Super G+/G3. The motor can and magnets came out of a toy building that was used to ring a bell. The can is identical to those found in Bachmann Tracksters HO scale jeep and van that are made to run on railroad track, only the magnets are stronger than Bachmann. This motor is much narrower than the usual TycoPro HT50 motor or the 440X2 becuase the magnets are 1/2 the thickness of Tyco 440 magnets but of similar strength. The narrower motor allowed for great sidewinder placement with the use of a t-jet 9 tooth pinion as an idler gear. The endbell is a combination of two Bachmann trackster endbells. One was turned 90°, the open brush ends filled with "A+B" epoxy, and 00-90 holes drilled and tapped to mount G+ brushes. You will notice that one of the brushes is very close to the rear tire. This was the limiting factor for how far back the motor could be placed in the chassis and still have brushes on the sides, and that is why the idler gear was necessary.
The most challenging piece was the idler gear bracket which supports one end of the idler gear. About 10 hours went into the construction of this bracket, all done by hand and "eyeballed" into position. Care had to be taken to bend it to the right thickness to go over the idler. Lining up the holes was also tricky, because this was done visually without measurements by placing the bent bracket over the can and idler shaft and drilling small holes - progressively enlarging them to size and position until everyting was lining up correctly.
The front half of the chassis is from a Landshark kit where I flattened the sides, trimmed off the body mounts, recessed the pickup wipers, and cut out extra-long notches for the 0.32' single main rails. The distance along the main rails from the motor to the front pan is the same as on the inline mini-motor Landshark. I "borrowed" this feature because I am assuming that the amount of chassis flex will be similar and I do not own a track for extensive testing.
Rear axle is titanium from JW's so that it is not attracted to motor magnet. Gearing is 9th pinion, 9th idler, and 24th driven gear. The floppy body mount is similar to that found on other sidewinders but is also removable to allow access for gear and tire pullers.
I have driven this car with a 3-ohm and a 7.5-ohm armature. Despite the wide resistance range, the car was very stable during hard acceleration out of the corner with either arm, producing surprisingly low tail wagging even with the 3-ohm arm. I think that a mid-range arm will yeild a very drivable, competitive car.

[image]Image[/img]

[image]Image[/img]

[image]Image[/img]

[image]Image[/img]

Joel
